Product Description
BRAND : AIRTECH
MODEL : AAS-2509ARCM-3.6H
TYPE : TUNNEL TYPE
Particle Efficiency : Above 99.99% Efficient On 0.3µm Particles
Pre-Filter : Non Woven Filter, W/ Aluminum Frame x6pcs
Main Filter : HEPA Filter x6pcs
Nozzles Qty. : 54pcs(ANTI-STATIC PVC NOZZLE)
Air Velocity(m/s) : Air Jet~Above 23
Air Volume(CMM) : Air Jet~Above 52, Recirculation Air~Above 26
Air Changes(Hour) : Air Jet~Above 140 Times, Recirculation Air~Above 70 Times
Construction : Coldrolled Steel with Baked Painting
Color : Ivory
Base : None
Electrical : AC 3Φ208V 60Hz
Power Consumption(VA) : Air Jet~About 7560, Recirculation Air~About 2160
Electrical Switches : Air Jet Auto-Manual Switch, Fan Switch, Lighting Switch, Photo-Electric Sensor Switch
Interlocking Action :
Both doors are interlocked. When one door is opened, the other
door is locked. In case of power failure, the door locks are
automatically released for safe personnel exit.
Frequently Purchase Together

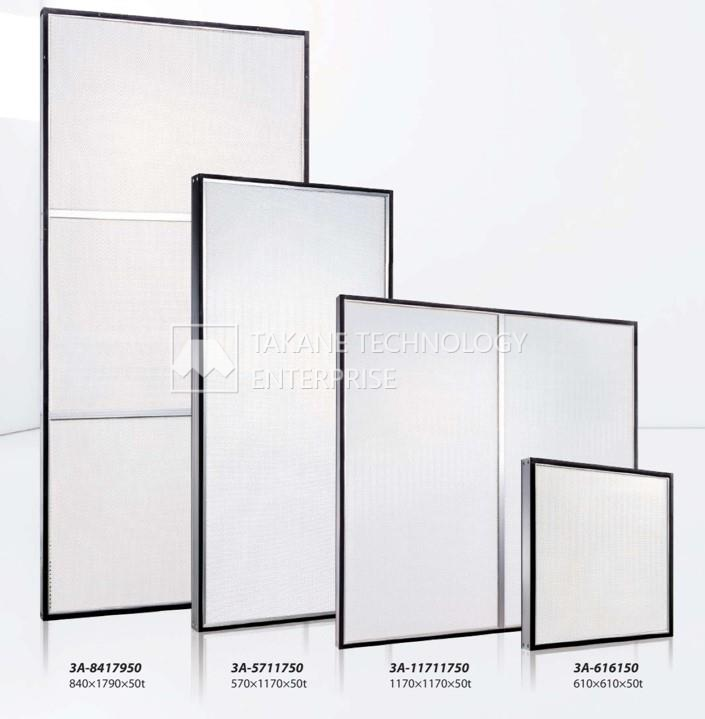

3A-8417950
BRAND : AIRTECH
TOTAL THERE ARE 4 MODEL :
MODEL 1 : 3A-8417950 (840X1790X50t)
MODEL 2 : 3A-5711750 (570x1170x50t)
MODEL 3 : 3A-11711750 (1170x1170x50t)
MODEL 4 : 3A-616150 (610x610x50t)
